What Is Bathroom Waterproofing?
Bathroom waterproofing is the process of applying a continuous protective membrane to the walls, floors, and joints of a bathroom to prevent water from penetrating the building structure beneath. It creates an invisible barrier between the wet surfaces of your bathroom and the structural materials behind them — timber frames, concrete slabs, plasterboard, and subflooring.
In Australia, bathroom waterproofing must comply with AS 3740, the national standard governing wet area waterproofing in residential buildings. Key areas requiring waterproofing include:
- Shower recesses (all walls and floors)
- Bath surrounds and edges
- Entire bathroom floor
- Wall-to-floor and wall-to-ceiling junctions
- Around all fixture penetrations
Done correctly, quality waterproofing protects your home’s structure for the life of the bathroom.
Why Bathroom Waterproofing Is the Most Critical Step in Any Bathroom Project
Every decision you make in a bathroom renovation — the tiles, the fixtures, the finishes — sits on top of one thing. The waterproofing membrane. It’s the foundation everything else depends on, and it’s the one step that can’t be revisited once the tiles go down.

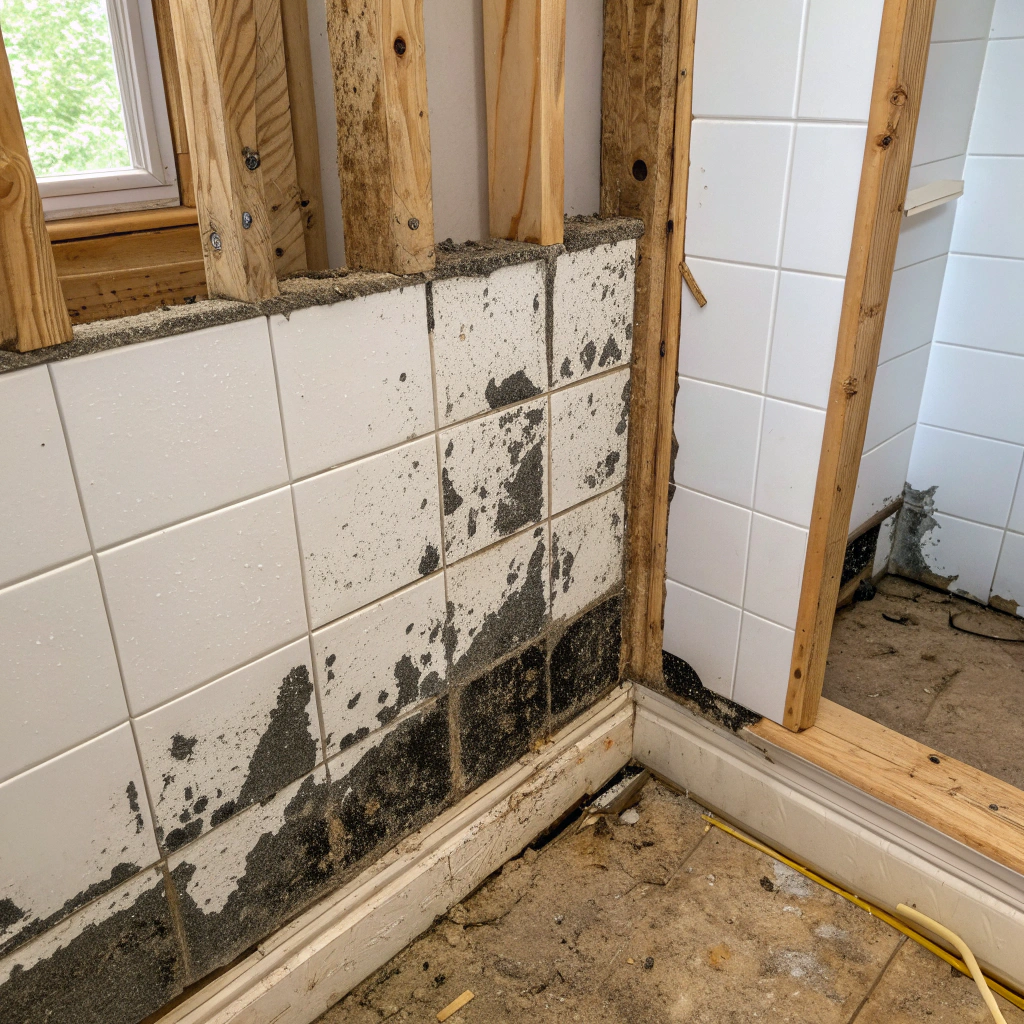

A tap can be replaced. Tiles can be regrouted. But if the waterproofing fails, there’s no quick fix. You’re looking at a full strip-out — tiles off, membrane reapplied, everything reinstated from scratch.
For Newcastle homeowners, coastal humidity and salt air mean moisture is already working against your bathroom from the outside. Add daily shower steam, and you’ve got an environment that will find any weakness in a substandard membrane — and exploit it.
What Our Bathroom Waterproofing Process Involves
Initial Assessment and Surface Preparation: Before a drop of membrane gets applied, the substrate has to be right. We inspect existing surfaces for cracks, contamination, and moisture, then prepare everything to manufacturer and AS 3740 specifications. Proper preparation is what determines how well the membrane bonds and how long it performs.

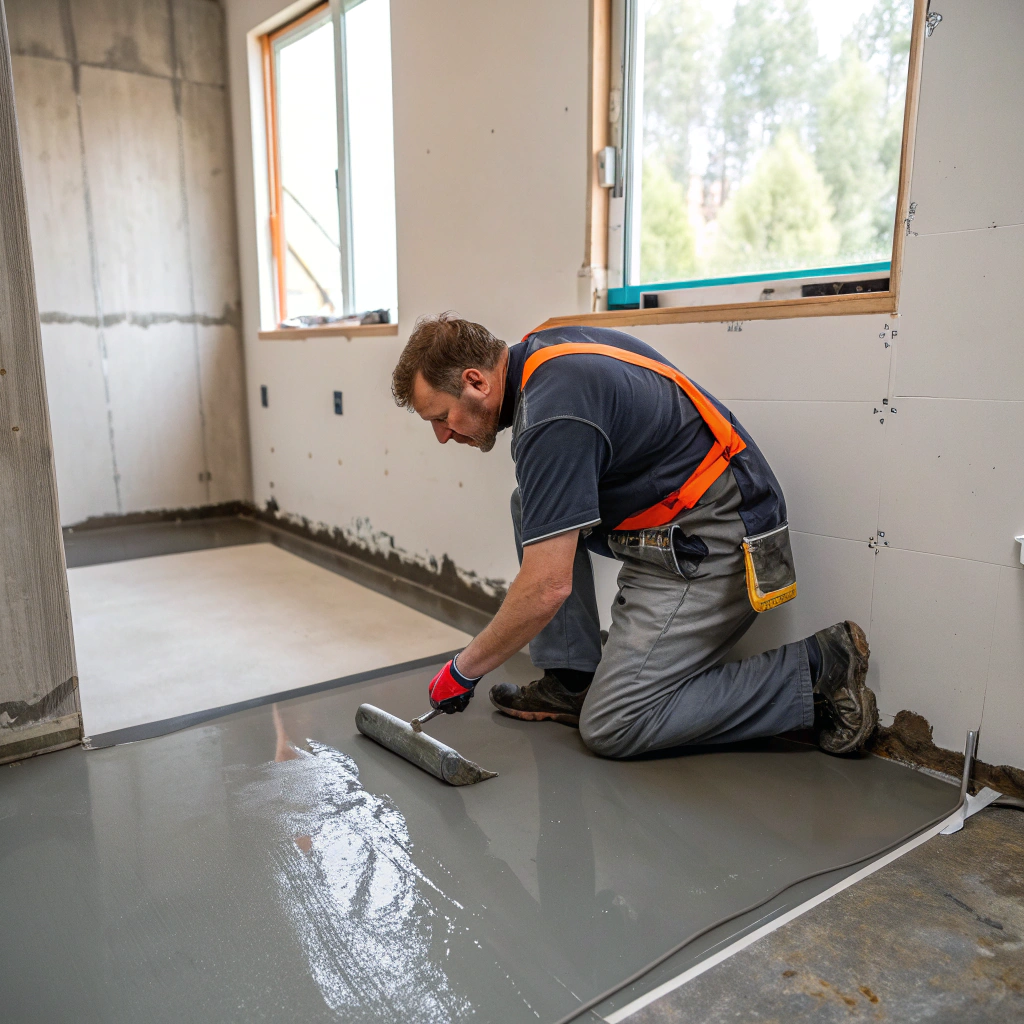

Membrane Application: We apply membrane in controlled coats to the required thickness, working methodically across floors, walls, and every transition point. Coverage rates, wet film thickness, and cure times are all monitored — not estimated. Cutting corners at this stage is exactly how waterproofing failures begin.
Joints, Corners and High-Risk Penetrations: The junctions between walls and floors, internal corners, and penetrations around pipes and fixtures are where most waterproofing failures originate. Every one of these points gets reinforcing fabric, bond breaker, and careful membrane detailing — because that’s where the standard demands it and where water will test it first.
The Critical Areas of a Bathroom That Must Be Waterproofed

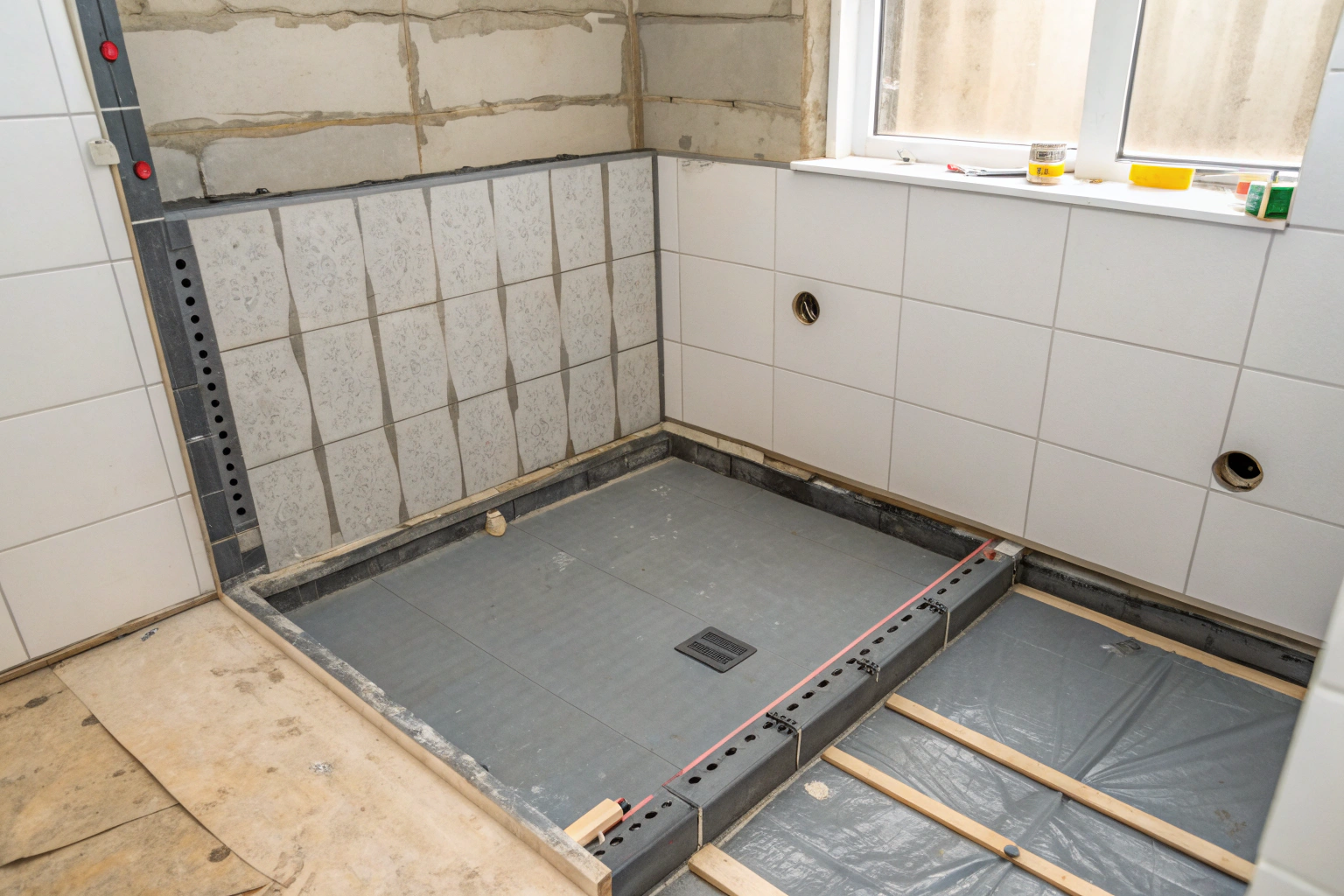

Shower Recesses: The shower recess carries the highest water load in any bathroom. Under AS 3740, all walls and floors within the shower must be fully waterproofed to a minimum height of 1800mm on shower walls. Every penetration — shower rose, mixer, drain — gets individual membrane detailing on top of the full area application.
Bath Surrounds and Bathroom Floors: Bath surrounds require membrane application to all edges and junctions where the bath meets walls and floor. The entire bathroom floor must also be waterproofed under AS 3740 — not just the wet zones. This is one of the most commonly skipped steps in substandard work and one of the first places water damage shows up.
Wall-to-Floor Junctions and Fixture Penetrations: Every junction where a wall meets a floor, and every point where a pipe or fitting penetrates a surface, is a potential entry point for water. These areas get bond breaker tape, reinforcing fabric, and full membrane coverage — because no matter how good the field application is, an unsealed junction will eventually let water through.
Waterproofing Membranes — What They Are and Why Product Quality Matters
Liquid-Applied vs Sheet Membranes
| Liquid-Applied Membrane | Sheet Membrane | |
|---|---|---|
| Application | Brush or roller applied in coats | Pre-formed sheet bonded to substrate |
| Best for | Complex shapes, corners, penetrations | Large flat floor areas |
| Flexibility | High — conforms to any surface | Moderate — requires precise cutting |
| Common use | Shower recesses, wall junctions | Concrete slab floors |
| AS 3740 compliant | Yes | Yes |
Both membrane types have their place. The right choice depends on your substrate, the bathroom layout, and the specific areas being treated — not on what’s cheapest or fastest to apply.
How We Select the Right Membrane for Your Bathroom
We match membrane type and product spec to your specific substrate, bathroom layout, and Newcastle’s coastal conditions — humidity, salt air, and thermal movement all factor in.
Waterproofing as Part of a Renovation vs Standalone Service
Waterproofing comes up in two different situations — as part of a full bathroom renovation, or as a standalone service for an existing bathroom that’s showing signs of failure or was never done to standard.
When it’s part of a renovation, waterproofing is scheduled at the right point in the build sequence, with every other trade working around it. Surface prep, membrane application, and cure times are built into the project timeline so nothing gets rushed.
When it’s a standalone job, the existing bathroom stays largely intact. We assess what’s there, identify where the membrane has failed or was never applied correctly, and carry out targeted remediation work to bring it up to AS 3740 standard.
Both scenarios get the same standard of work. If you’re planning a full renovation, see how we handle waterproofing as part of the complete project. If you’ve got an existing bathroom you’re concerned about, a free on-site assessment is the right place to start.
Why Newcastle Homeowners Trust Us for Bathroom Waterproofing
Newcastle homes have specific challenges that generic contractors don’t always account for — coastal humidity, salt air corrosion, and ageing substrates in the older weatherboard and brick homes common across Cooks Hill, Hamilton, and Merewether.
We’ve waterproofed bathrooms right across Newcastle and the Hunter, and every job is AS 3740 compliant, fully documented, and backed by our workmanship guarantee. Clear written quote before anything starts, no hidden costs, and no sign-off until the membrane has been properly inspected.
If you want it done right the first time, we’re ready to help.
Frequently Asked Questions About Bathroom Waterproofing in Newcastle
For a standard bathroom, we typically allow 1–2 days for application plus cure time before tiling can begin. Rushing this stage is how failures happen, so we don’t.
A properly applied, AS 3740 compliant membrane should last the life of the bathroom — typically 20+ years. Product quality and correct application are what determine longevity.
In some cases, yes. We assess the existing surface first — if it’s structurally sound and properly prepared, we can apply a membrane over it. If it’s not, we’ll tell you upfront.
Honestly, you often can’t tell by looking. We do a physical assessment to identify whether compliant waterproofing is present and where any weak points are.
Waterproofing itself doesn’t require a DA, but it must be carried out to AS 3740 and inspected as part of any licensed building work. We handle all compliance documentation.
Water-resistant materials slow water penetration. Waterproofing stops it. Only a continuous, compliant membrane system meets AS 3740 and genuinely protects your home’s structure.
